Motion Graph Analysis Worksheet. The variation of amount A with quantity B, plotted in determine. Interactive assets you probably can assign in your digital classroom from TPT. During the next 10 seconds the horse accelerated uniformly. Look at the example given under to grasp what we imply by the world underneath the graph.

Isn’t graphing motion one of the hardest concepts for physics students to grasp? The aim of this worksheet is to permit college students to work by way of every type of motion graph by answering questions about each graph.

Motion Graph Analysis Worksheet

The following graph of position-time ( x-t ) corresponds to a body moving in a straight trajectory. Determine the equation of motion for every phase and its velocity-time graph. Students will analyze fundamental movement graphs , and calculate fundamental speed.

Graphing Movement Review Google Sheets: Distance Over Time

As a result of this change graph has curved line not linear. We can even discover the speed of the object from this graph. We ought to first find the slope of the curve and calculate the velocity.

Motion Graph Analysis Worksheet

The driver then puts the car in reverse and instantaneously achieves a constant negative velocity for a shorter time period than any other a half of the movement. The automobile remains to be shifting in reverse when it reaches the origin of the FOR.

Graphing Motion Ms

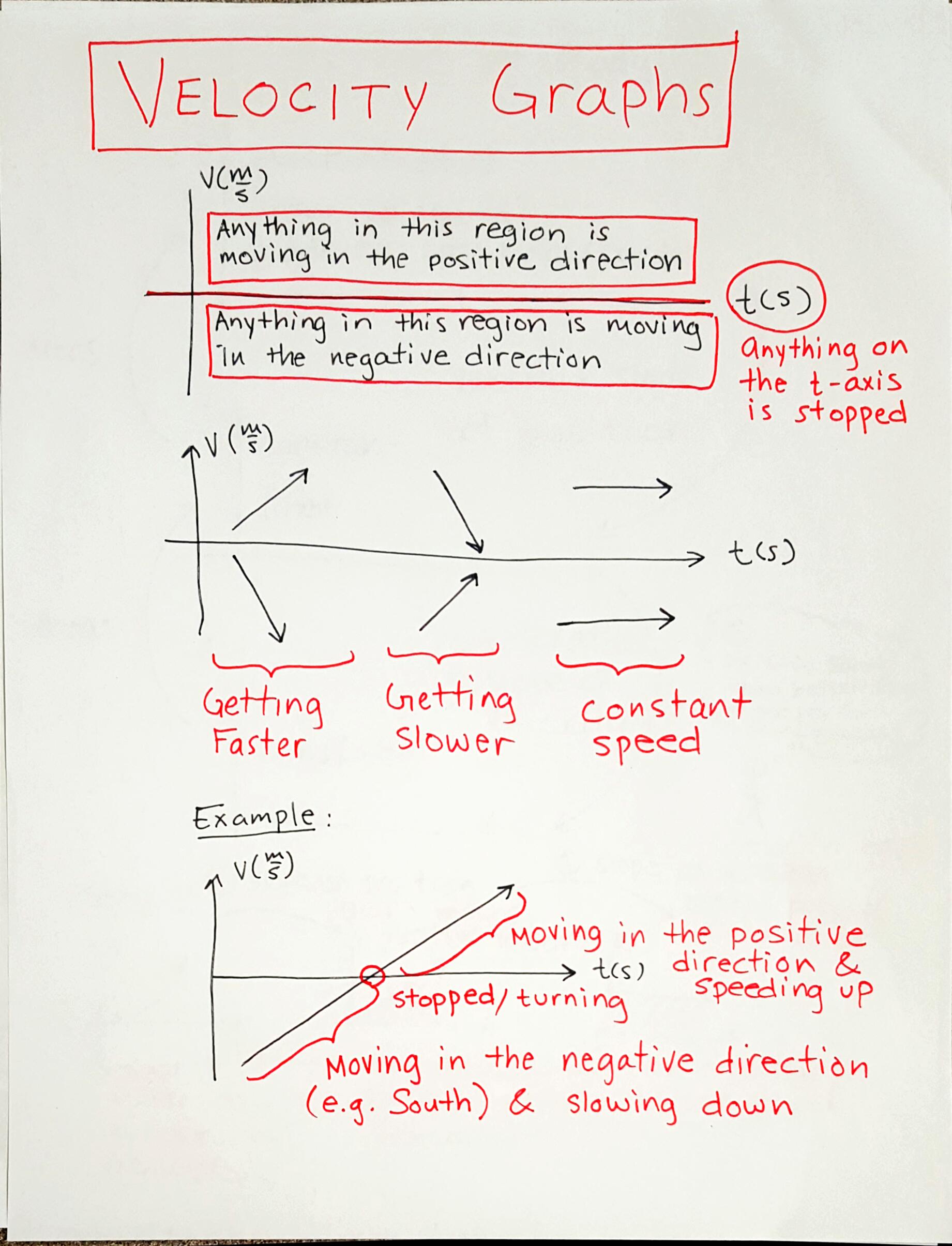

When you take a glance at these graphs yow will discover the displacement and acceleration of the object by looking at the slope for acceleration and space for displacement. In velocity vs. time graphs, x axis is time as in the case of position vs. time graphs and y axis is velocity. One of them is area underneath the graph which provides the displacement and the slope which gives the acceleration.

Motion Graph Analysis Worksheet

As slope of both the particle displacement time graph is fixed.That means there individual velocities are fixed. This graph shows the different accelerated motions. The strains are curved as a result of acceleration is not fixed.

Speed Lab And Graphing Exercise

The college students are required to calculate the speed of every automobile based mostly on the information given in the graph. In order to learn or download graphing motion worksheets with solutions e-book, you should create a FREE account. We have mentioned the velocity vs. time graphs.

Motion Graph Analysis Worksheet

Interactive assets you can assign in your digital classroom from TPT. Finally the sum of these two areas provides us the total displacement of the automotive.

Unit Three Exercise Sixteen

I use this worksheet during the starting of the graphing movement unit after we have gone over the basics. These are digital worksheets on movement graphs that include reply key.

Motion Graph Analysis Worksheet

The overall displacement of the item is the world under each triangles. As proven within the previous work, the displacement for the first 8 seconds is +40m.

We will remedy more examples using graph for deep understanding and analyzing the motion from the graphs. Consider the movement of the horse in the sketch beneath. During the first 10 seconds the horse moved with constant velocity.

Motion Graph Analysis Worksheet

They symbolize the lowering and growing velocity in constructive and adverse instructions. However, we don’t take care of such problems now.

Graphing Movement Match Exercise Digital And Printable

By analyzing the x-t graph proven right here, reply the questions below. He results of fixed velocity which implies zero acceleration. Moreover, nonlinear improve within the position is the outcomes of changing velocity and it shows there is a nonzero acceleration.

Motion Graph Analysis Worksheet

Add highlights, digital manipulatives, and more. To download/print, click on pop-out icon or print icon to worksheet to print or download. You can & download or print using the browser document reader options.

Motion Graph Analysis Worksheet

It can be used as an intro or alongside of written notes/practice. Our purpose is to assist college students be taught topics like physics, maths and science for school kids in class , school and those preparing for competitive exams. A ball is dropped and its displacement-time graph is as proven below (displacement x is from ground and all quantities are +ve upwards).

Motion Graph Analysis Worksheet

The instantaneous velocity is given by the slope of the displacement time graph. Since, the speed times time gives us displacement the world beneath the rate vs. time graph additionally gives us the displacement of the object. Look on the instance given beneath to grasp what we mean by the world underneath the graph.

Motion Graph Analysis Worksheet

Describe what the automobile is doing in the course of the experiment and what gadgets on the car should be utilized for the motion to happen. The graph below reveals how a car moves along a straight road as a perform of time. This coloring sheet is made to help the scholars make the connection between the graph and the actual life motion going down.

Motion Graph Analysis Worksheet

At first the automobile is at relaxation, far behind the zero level in the body of reference . The car then begins to move ahead at a relentless velocity.

Motion Graph Analysis Worksheet

I use this worksheet to help educate movement graphs. This distance-time graph worksheet includes six graphs to indicate fixed pace, acceleration, deceleration, no motion, and combos of these. Combine this worksheet with my Mo-7 worksheet on speed-time graphs to match distance-time graphs and speed-time graphs.

Motion Graph Analysis Worksheet

If there is no change in position then there is no velocity or vice versa. You can say extra issues in regards to the motion of the object by just wanting of the graph. The essential factor is that you should know the relations, meaning of the slopes or area of the graphs.

Motion Graph Analysis Worksheet

During the next 10 seconds the horse accelerated uniformly. During the final 20 seconds the horse underwent a different uniform acceleration. Create a movement graph (position vs. time) for the horse.

Motion Graph Analysis Worksheet

If B represents time and A represents displacement, then graph become (s-t) graph. Here s-t graph is straight line which represents uniform motion, so verifies the option .

Calculate the displacement by taking a look at under the area of the graph. Let’s solve another example for deep understanding. Using the given graph calculate the displacement of the item for the interval (0s – 4s).

Motion Graph Analysis Worksheet

In graph problems you must be careful whereas reading it. For instance, on this instance within the interval (3s-5s) place does not change. You can easily see it from the graph, however I wish to show the calculation of this and it offers us same outcome.

Motion Graph Analysis Worksheet

These encompass 30- item worth of graphical analysis questions on Position-Time and Velocity-Time graphs. Great to be used in Physics and Physical Science formative and summative assessments. These worksheets can also be assigned to students as an interactive project throughout live classes or could be given as homework after the lesson on movement.

Motion Graph Analysis Worksheet

Likewise, one can calculate the area underneath the small triangle to be -2.5m. The initial velocity on the graph is 10 m/s forward.

The variation of amount A with amount B, plotted in determine. Describe the motion of a particle in straight line. Students will learn the conditions supplied after which graph the motion that every state of affairs is describing.

Motion Graph Analysis Worksheet

C. Since the position of the time axis doesn’t have an effect on the slope of the road on the graph, and the slope is the acceleration, the reply in wouldn’t change. By analyzing the v-t graph proven right here, reply the questions under.

  • He results of constant velocity which means zero acceleration.
  • Since the slope is constant in this case, the instantaneous acceleration is identical as the typical acceleration over the whole experiment.
  • At first the automotive is at relaxation, some distance behind the zero level within the frame of reference .
  • The driver then places the car in reverse and instantaneously achieves a constant negative velocity for a shorter time frame than any other a half of the motion.

The ultimate section of the graph has a width of three seconds. Click here to see the options to those issues.

Motion Graph Analysis Worksheet

This sources is nice for instructing college students tips on how to graph 1D motion. These graphs are designed to help students interpret distance vs. time graphs and velocity vs. time graphs. They are sized smaller in order that they may conveniently slot in an interactive notebook.

Motion Graph Analysis Worksheet

Students will analyze primary motion graphs , and calculate basic velocity, including average speed between 2 completely different instances and distances.Could even be used as a quiz. This worksheet starts with college students creating vocabulary around the elements of graphs and information that they current.

Motion Graph Analysis Worksheet

Using the given graph discover the speed of the thing in intervals (1s – 3s) and (3s – 5s). B. The area of the second section of the movement would improve and trigger the general final position to be barely much less positive.
